Mechanicals — Boiler, Water Heater, Panel
8 photos · mechanical
Old boiler was a Williamson, water heater was a 2008 Rheem, and the panel was a 100-amp Murray with everything maxed out. I had the gas guys swap the boiler for a Weil-McLain GWA-105N and put in a new Rheem Fury 40-gallon. Cleaned up the copper, added a proper expansion tank, and labeled the panel. Boring work that you only notice when it isn't done.
-
Before Old Williamson gas boiler still running when I bought the place. Lived its life.
-

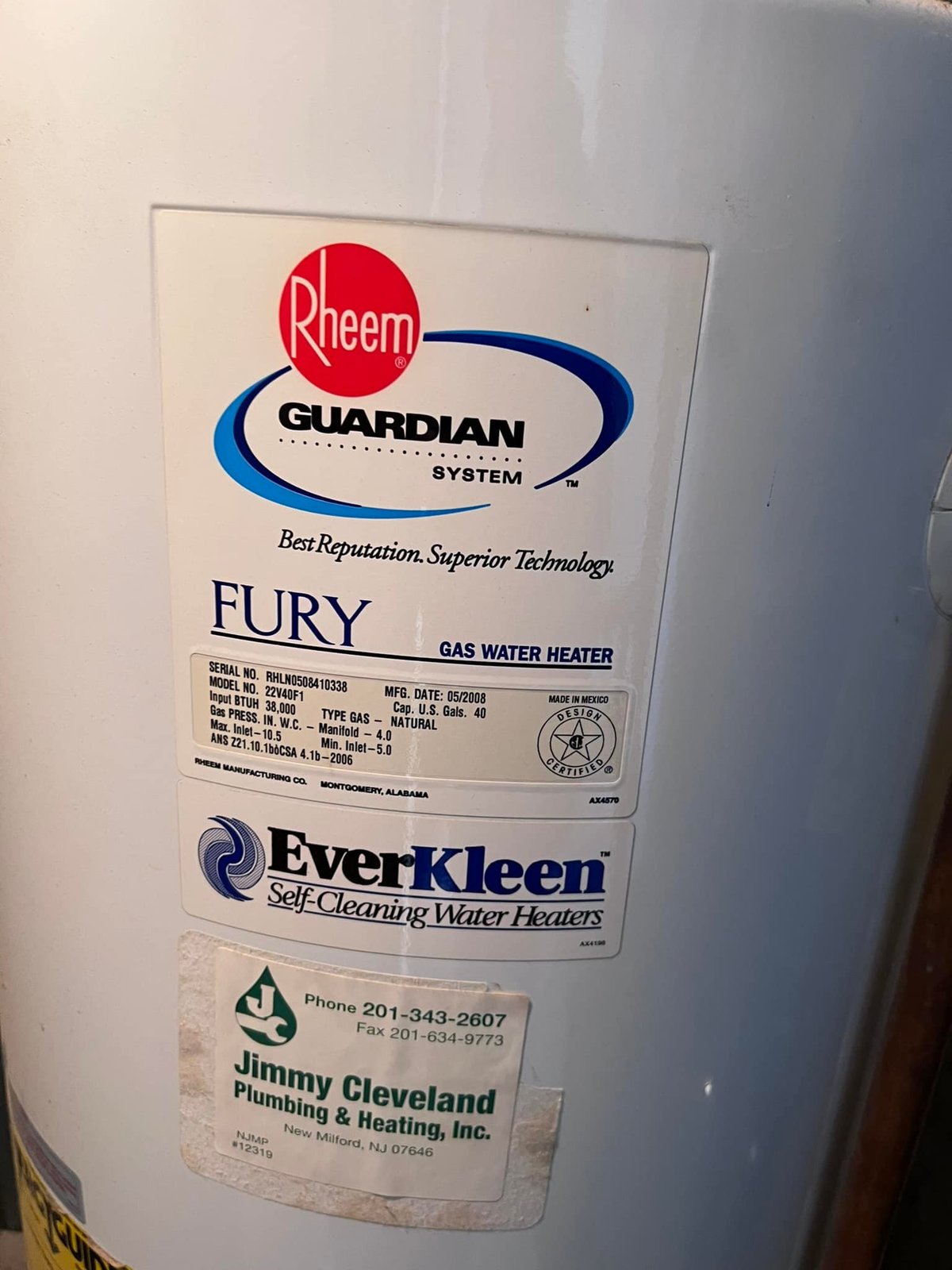

Existing Rheem 40-gallon spec plate — 2008 build. Way past its expected life.
-

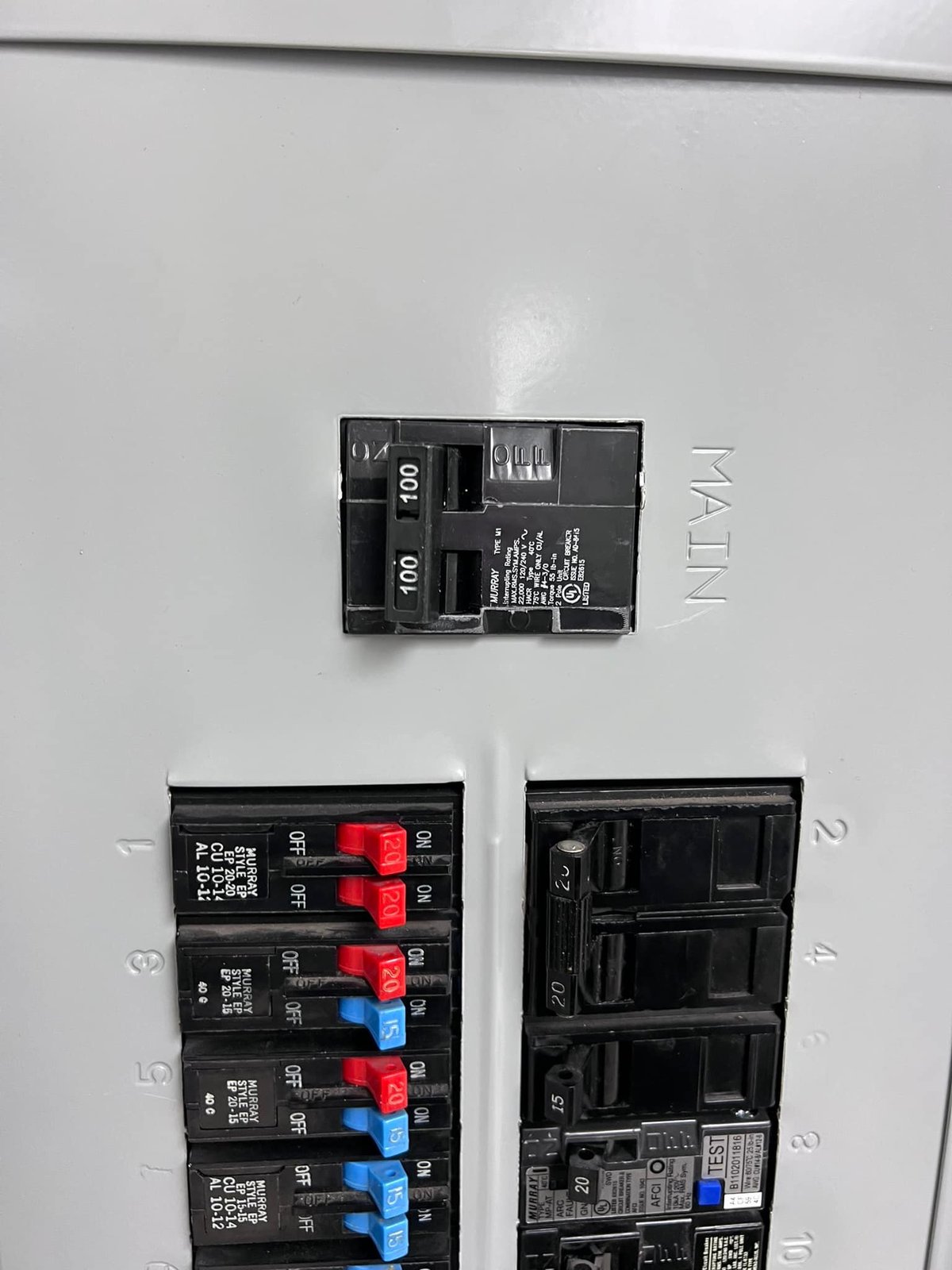

Murray 100-amp panel inside. Branch circuits were a mess — I had it relabeled and tightened.
-

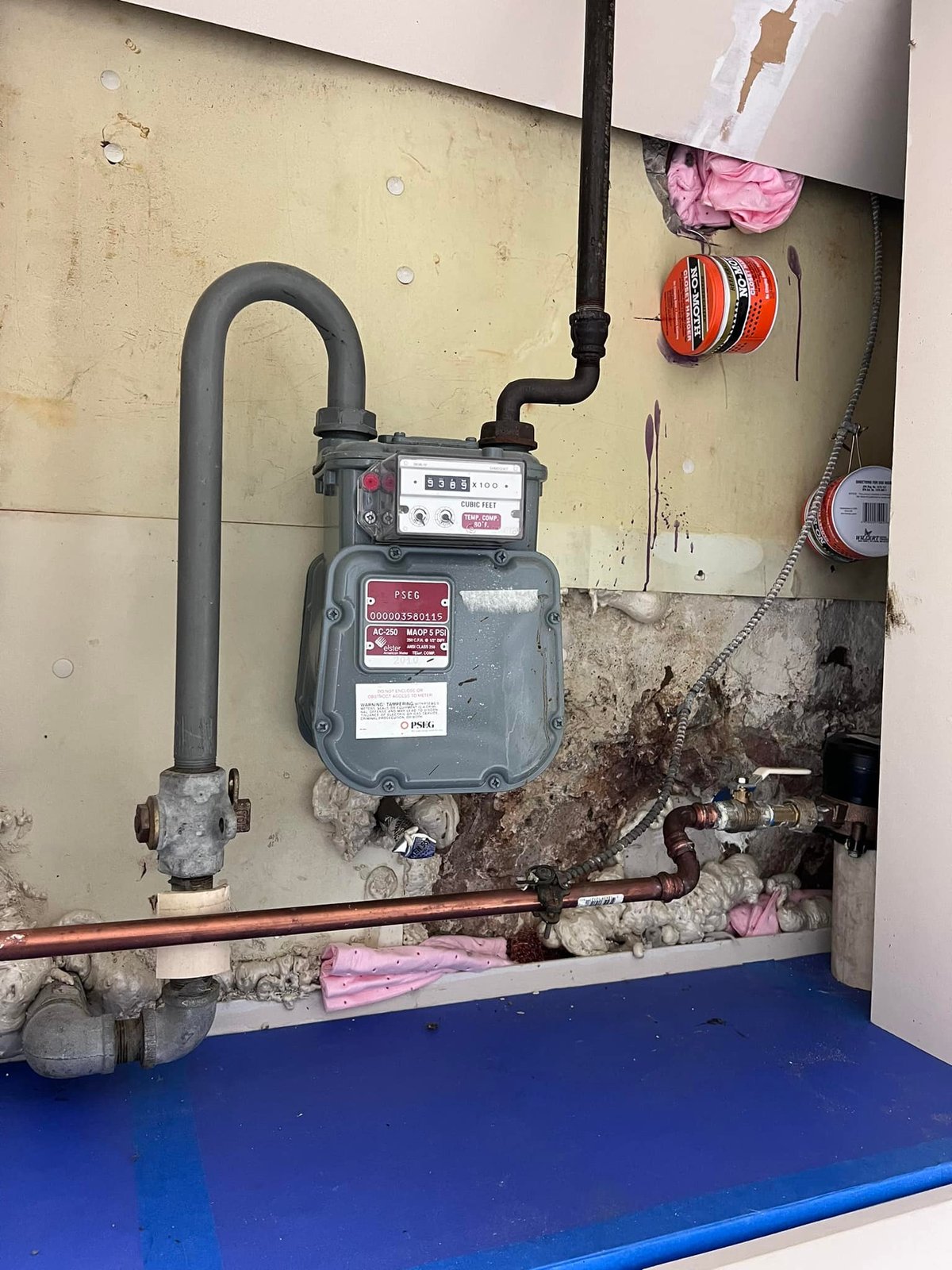

During PSEG meter and copper supply lines exposed while we redid the utility closet.
-

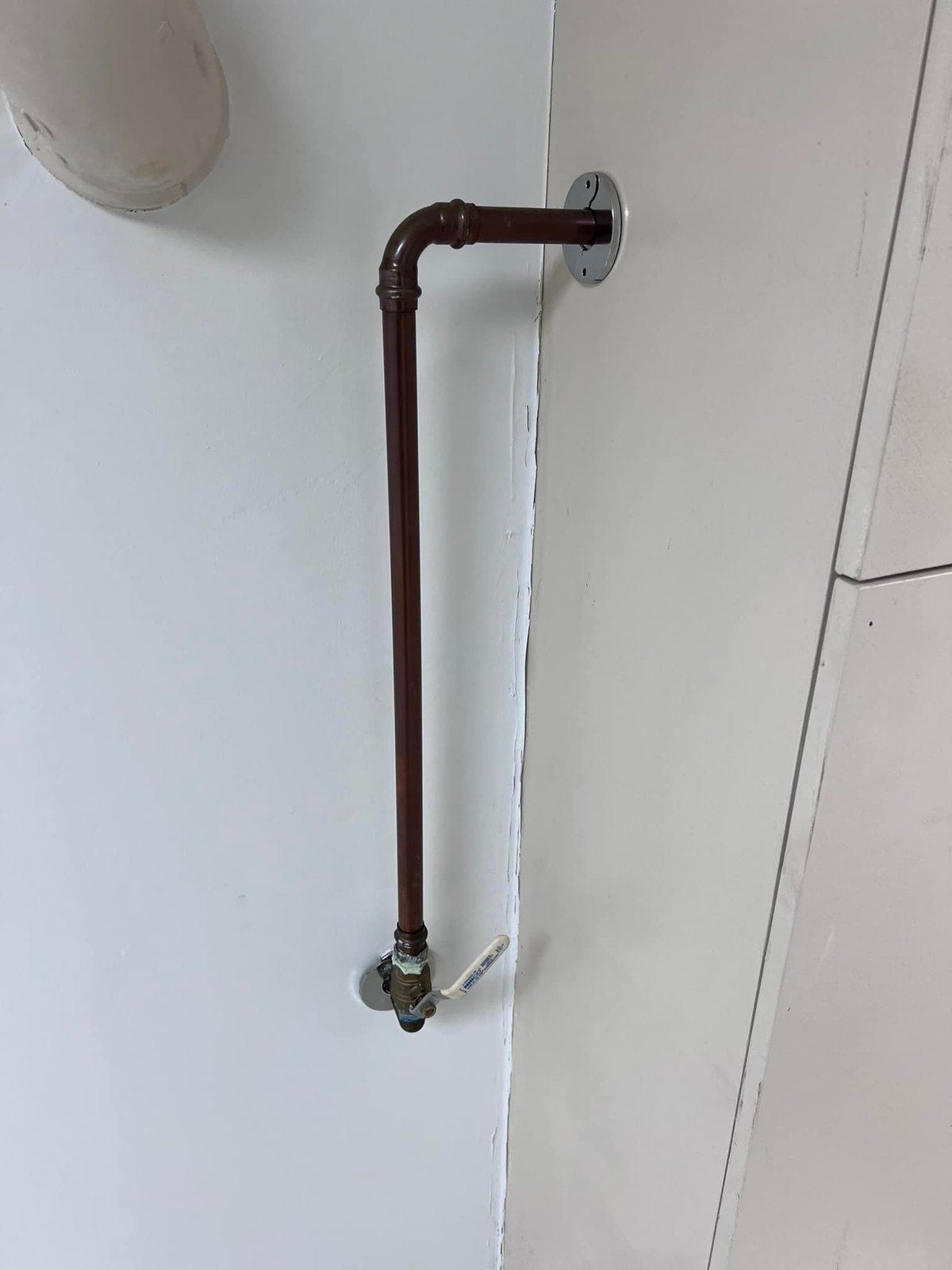

New copper run with a proper ball valve shutoff. Old line had a gate valve that didn't seat anymore.
-

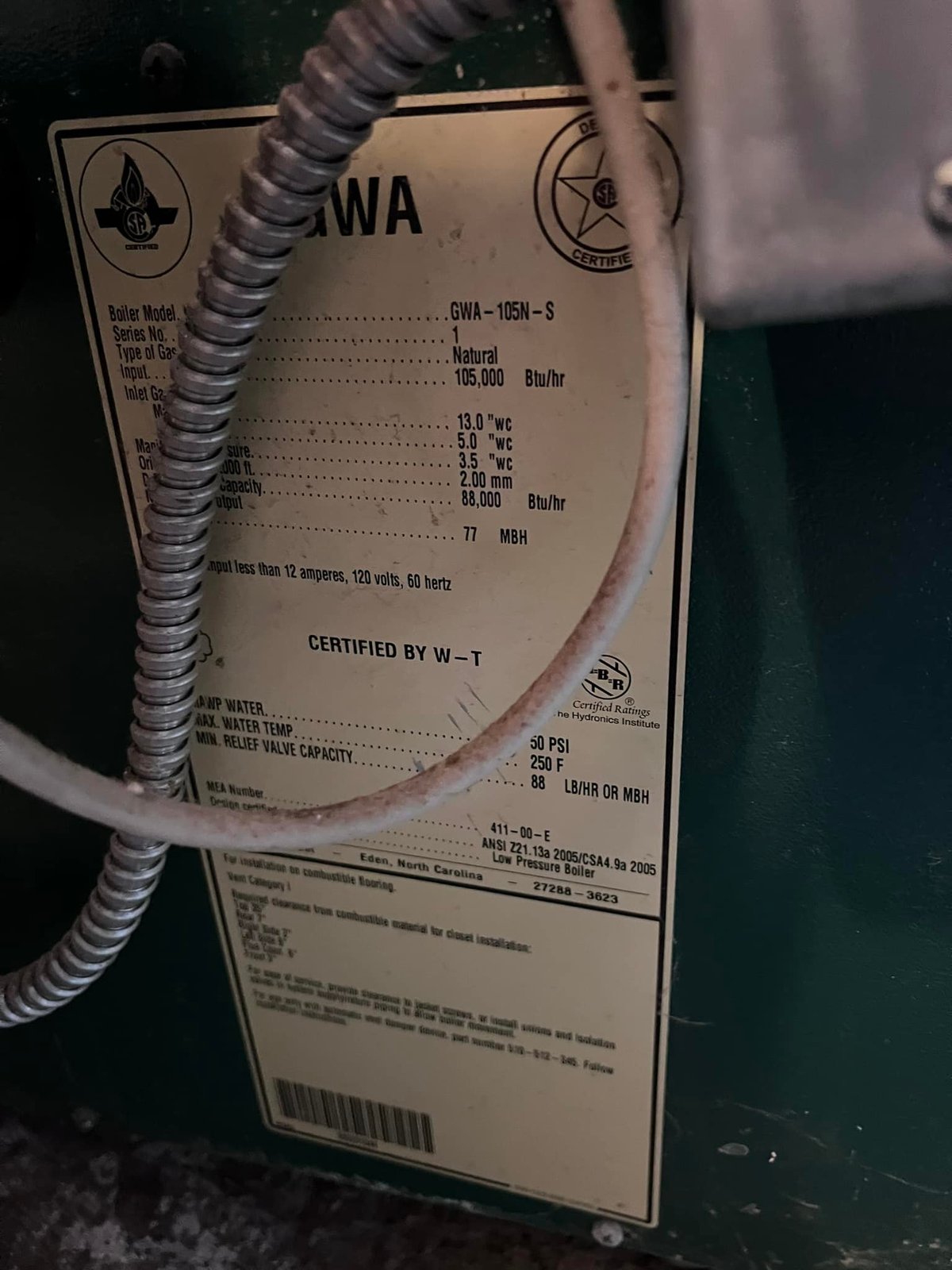

Spec plate on the new Weil-McLain GWA-105N. 105k BTU input, sized right for this house.
-

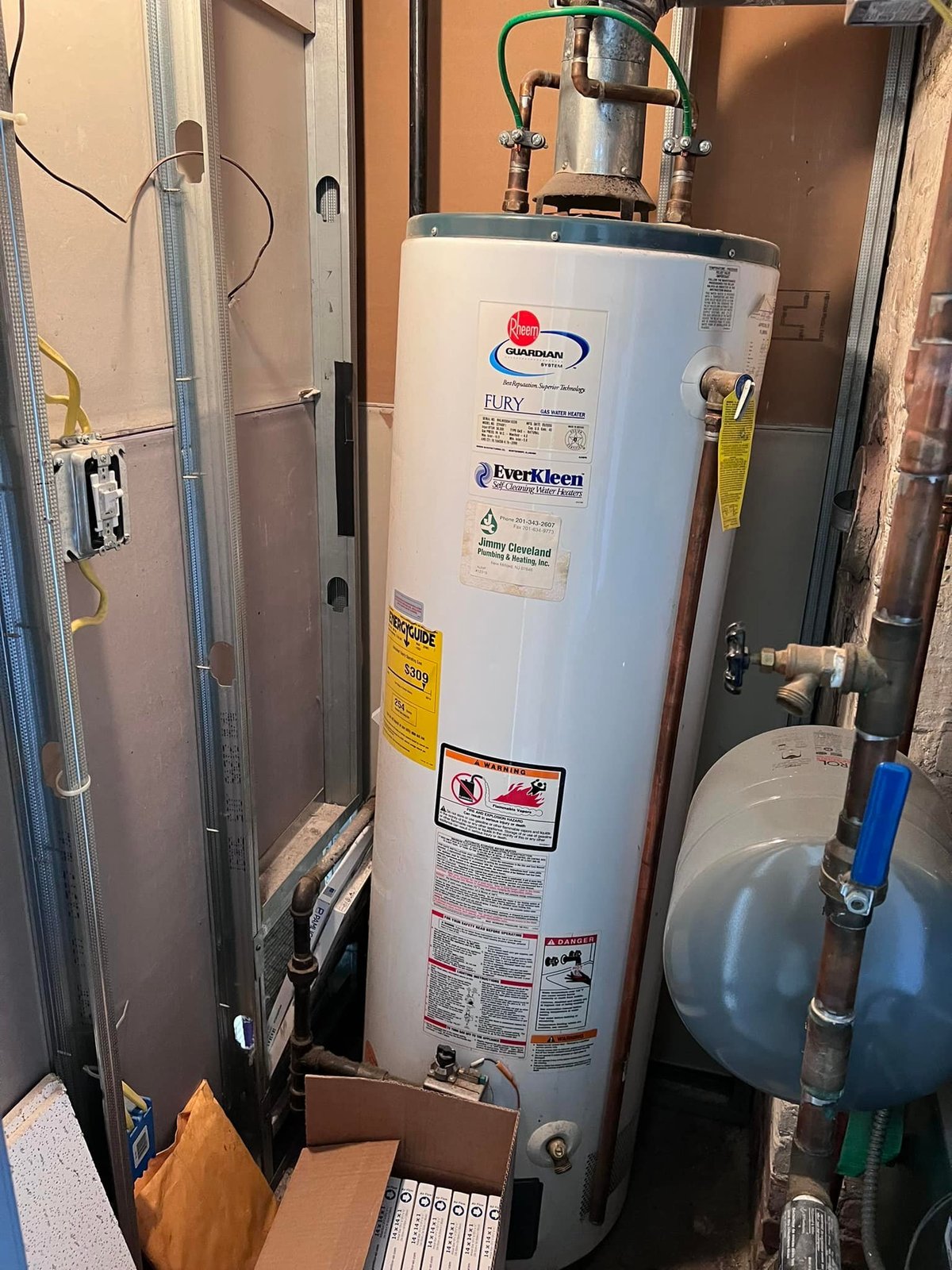

After New Rheem Fury 40-gallon in the utility closet with a proper expansion tank tied in.
-

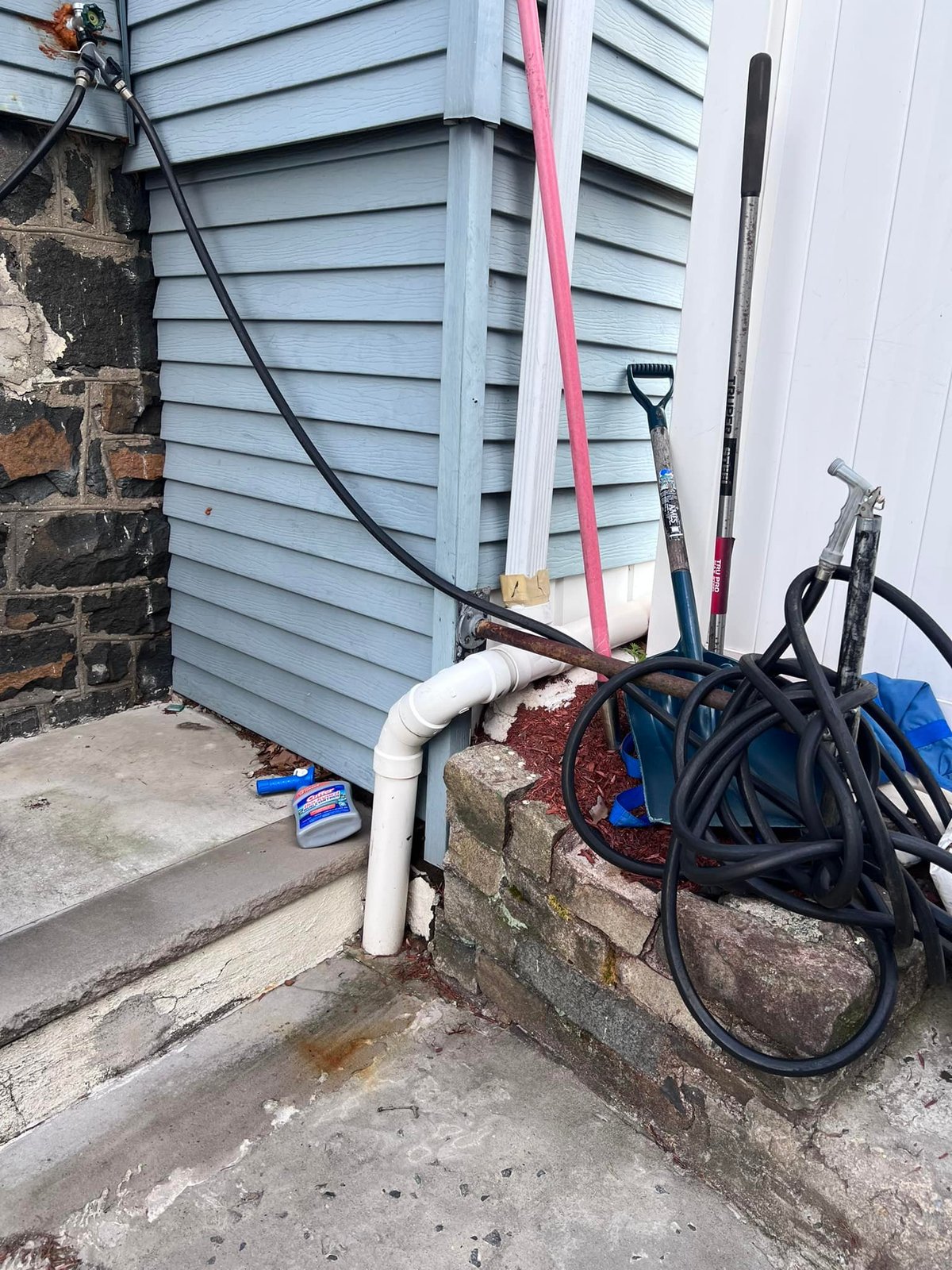

Cleaned up the exterior PVC drain and hose bib penetrations through the siding.
